Length – OA 4740mm
Width – OA 1840mm
Wheel base 2644mm
Front track 1565 mm
Rear track 1555mm
Wheels 18” x 10” front and rear
Tyres 280 / 655 / 18
Brakes AP CP5040 Calipers front and rear
Brakes front 356mm x 28mm
Brakes rear 330mm x 28mm
Aero 1000kg – (speed and ride height dependant)
Engine Your choice of Australian V8 or
European 4 and 6 turbo engines
Bell housing Barry Lock engineering
Gearbox Holinger RD6 SSR
Diff Barry Lock Engineering “Ford 9” diff”
Weight 890kg
Uprights Barry Lock Engineering – billet front and cast rear

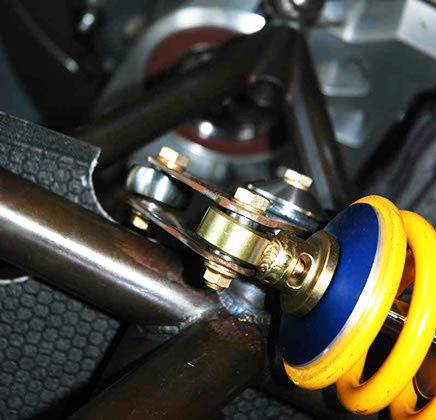

Dampers MCA – custom designed for this
vehicle and application
Roll cage Competition CAMS certification 01 - 00522
